iPhone 5S Lightning Connector Replacement

There's a small hole in the SIM card tray. Push either a SIM card eject tool or a paperclip into it.

Press the tool in order to eject the tray. You may need to use some force to do this.

Take the SIM card tray assembly out of the iPhone.

Make sure that the SIM card is in proper orientation (in relation to the tray) when you're placing the SIM card back.

Lift the button assembly cable from its socket on the logic board with a spudger.

Make sure that you lift the connector and not the socket itself. If you lift the socket, you risk breaking the connector completely.

Lift the Lightning connector cable from its socket on the logic board with a spudger.

Make sure that you fold the Lightning connector cable so that it's not in the way of the logic board.

Lift the antenna from its socket on the logic board with the tip of a spudger.

Disconnect the rear-facing camera cable from its socket on the logic board, using the flat end of a spudger.

Remove the tape covering the camera flash bracket, if there's any.

There are seven screws on the logic board. You need to remove them.

One 2.4 mm Phillips screw

Two 2.3 mm Phillips screws

Four 2.8 mm Phillips screws

Remove all of these with a small flathead screwdriver.

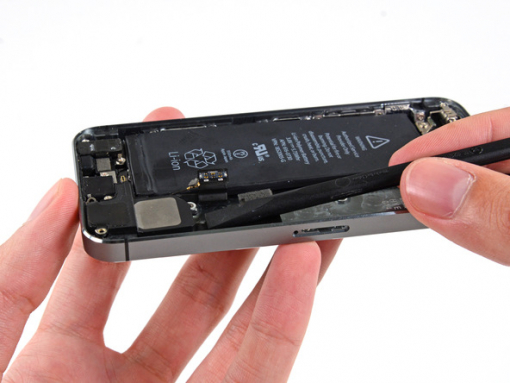

Lift the logic board up so that you can grab it with your fingers. Do this with a plastic opening tool.

Separate the logic board and the rear facing camera only slightly.

The logic board is connected by an antenna cable on the back, so don't remove it immediately.

Turn the logic board toward the battery (similar to turning a page in a book).

Disconnect the antenna cable on the back of the logic board with the flat end of a spudger.

Take the logic board off the iPhone.

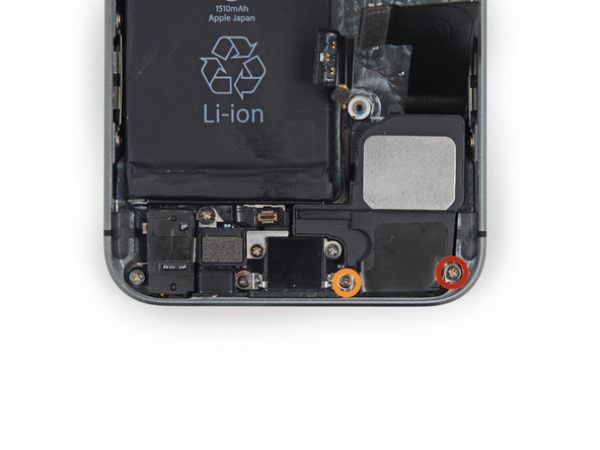

You need to remove two screws:

One 2.9 mm Phillips screw

One 1.5 mm Phillips screw

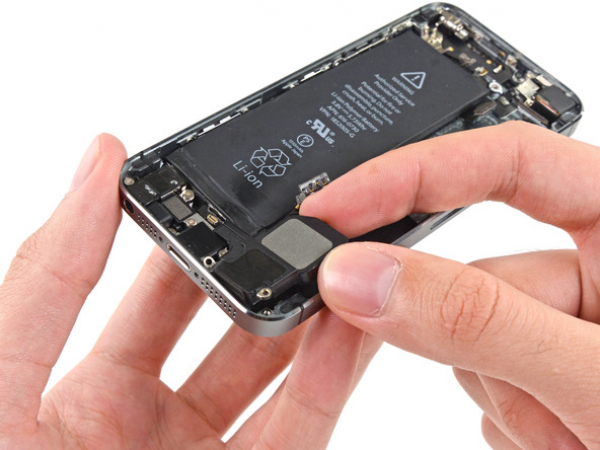

Lift the speaker from the rear case with the flat end of a spudger.

Do not lift the speaker completely out of the case.

There's a small peg that slides into the slot located beneath the home button cable socket.

In order to free the peg from the Lightning connector assembly, you need to lift up the speaker and pull it toward the side of the phone.

Take the speaker out of the iPhone.

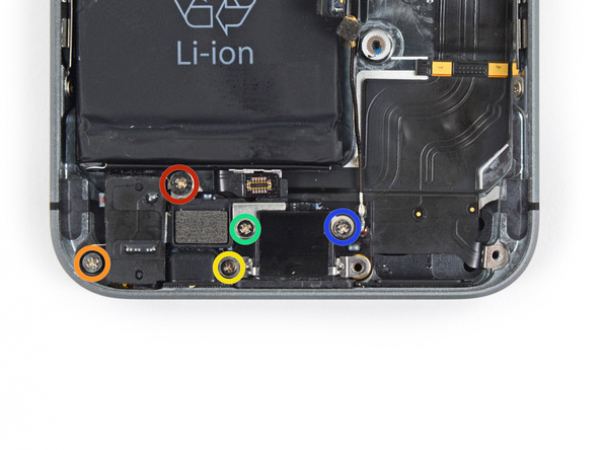

You need to remove five screws.

One 3.1 mm Phillips screw

One 2.9 mm Phillips screw

One 1.5 mm Phillips screw

One 3.6 mm Phillips screw

One 3.4 mm Phillips screw

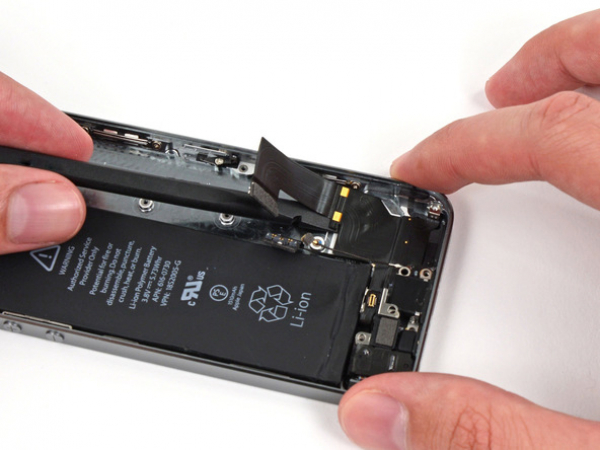

A mild adhesive is holding the Lightning connector data cable and the rear case together.

Separate the cable from the rear case with the flat end of a spudger.

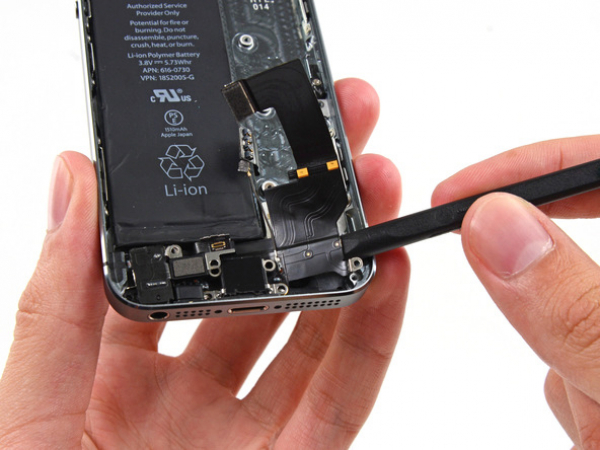

Keep prying with the spudger in order to separate the lightning connector assembly from the rear case.

Loosen all parts of the assembly. That includes the headphone jack, home button cable socket and the Lightning connector itself.

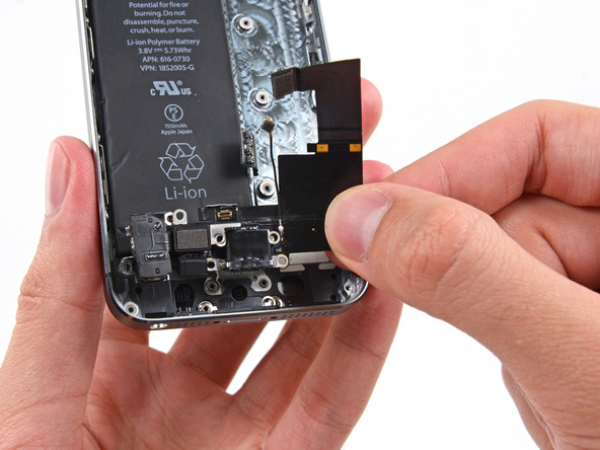

Remove the Lightning connector assembly completely.

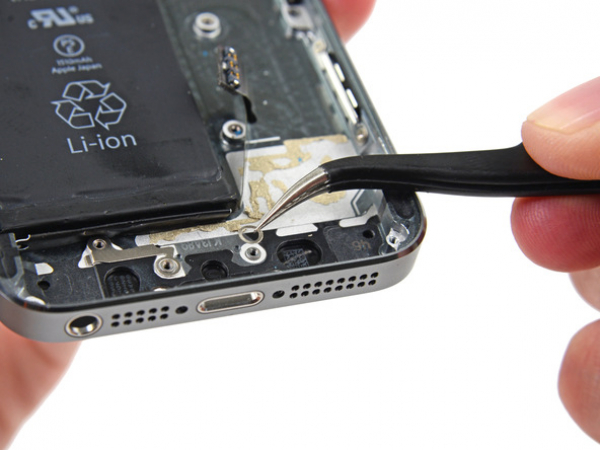

A bracket and washer (small metal pieces) could come loose and fall out of the phone when you're removing the Lightning connector assembly.

If you are planning on removing more components, it's recommended that you first take out these two pieces and set them aside.
